DM-1801: Baofeng Digital Dual Band Transceiver handheld radio
Sorry - this item is temporarily out of stock.
DM-1801 : Baofeng Digital Dual Band Transceiver.
VHF/UHF, 136-174mHz and 440-470mHz (2m & 440) bandwidths. DMR (digital mobile radio), Dual Time Slot, compatible with MOTOTRBO Tier I and II, 1024 Channels, Dual Band display, Dual Frequency display.
Description / Specifications:
Frequency Range:Dual Band VHF 136-174MHz &UHF 400-470MHz
Storage channel:64 groups ,1024
Stepped Frequency:2.5/5/6.25/10/12.5/20/25KHz
Operating Voltage:DC 7.4V
Frequency Stability:±1.5ppm
Operating Temperature:-20°c ~ 50°c
Operating Mode:Same-frequency simple or different-frequency simplex
Antenna Impedance:50Ω
Battery Capacity:2200mAh
Dimensions :133 ×62 ×32mm(Antenna Not included)
Transmitting
Output Power:1W/5W
Modulation (wide band/ Narrow band)
Analog: 16K F3E/11K F3E,Digital:Tier i&ii
Maximum frequency Deviation (wide band/ Narrow band):≤5KHz /≤2.5KHz
FSK allowable error rate:≤3%
Spurious power:≤7.5 W
Adjacent channel power: ≤-65dB ≤-60dB
Signal to noise radio:-45dB -40dB
CTCSS/DCS Frequency Deviation:0.7 ±0.1KHz/0.4± 0.1KHz
Modulation sensitivity
8-12mV
Transmitting Current:≤1.5A
Receiving
Analog sensitivity:-122dBm (12dB SINAD)
Digital sensitivity:-120dBm (BER ≤5%)

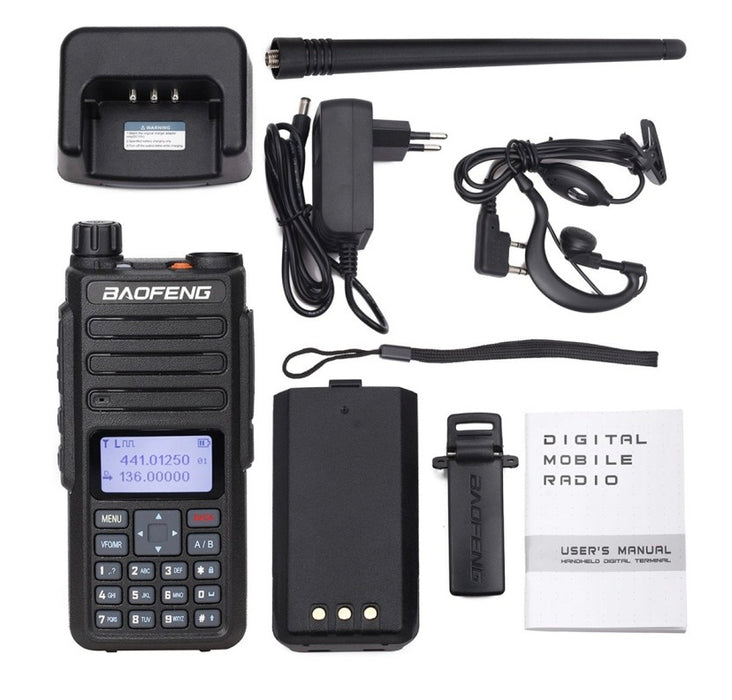

Package Contains:
1x BAOFENG DM-1801
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× User Manual
1X USB Programming Cable
Features & details
- Baofeng DM-1801 is a Dual Band, Dual Time Slot, Tier I & Tier II compliant DMR radio Enjoy crystal clear audio quality with DMR technology.
- Frequency Range:Dual Band VHF 136-174MHz &UHF 400-470MHz,The talking range of Baofeng DM-1801 can be as far as 5KM (3 Miles) under the visible range. There are other factors that affect the talking range of a two- way radio. such as weather, exact frequency used, and obstructions etc.
- Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time. It lasts 30% longer than the other DMR radio. DM-1801 is light weight and handy, perfect for long QSO’s.
- More keypad operations Channel names, TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.
- Kits include:1× BAOFENG DM-1801 ,1× Battery Pack,1× Adapter,1× Antenna ,1× Hand Strap,1× Belt Clip ,1× USB Programming Cable ,1× User Manual, we will give you the guide document of operation,such as firmware , and all can download from the ABBREE official website or can contact our service to help you.( ABBREE down link：http://www.abbree.com/modules/download/slides/DM-1801.rar )
